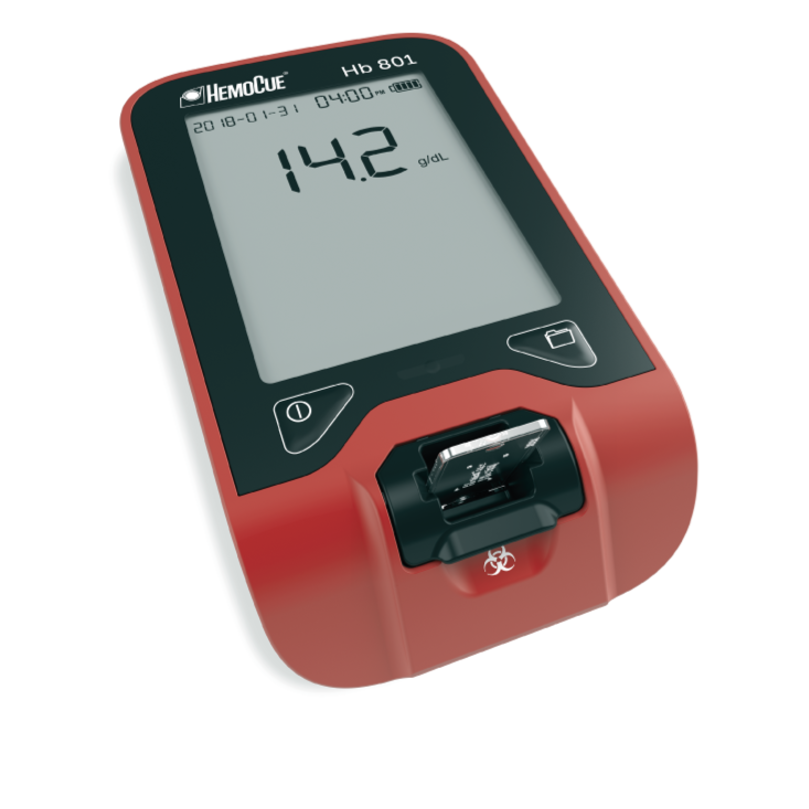

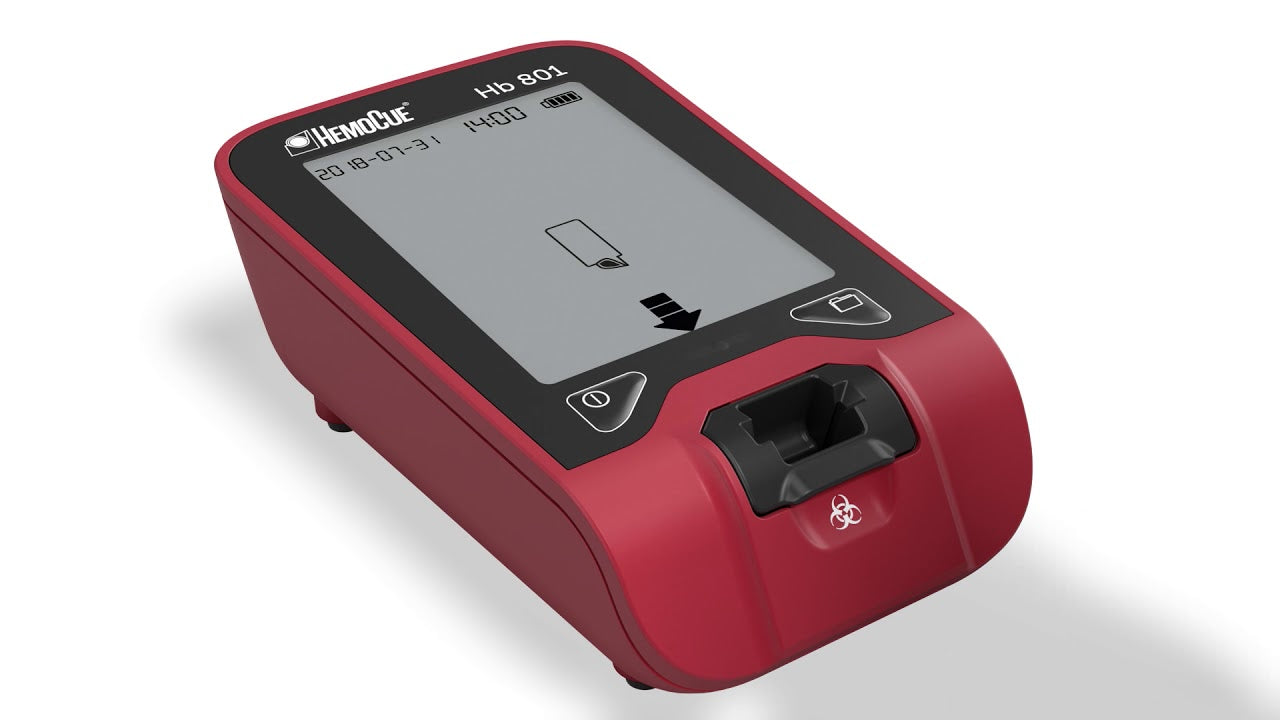

HemoCue Hb 801 Analyser

SKU QMR121922

HemoCue Hb 801 System Analyser taking point-of-care testing to the next level.

HemoCue® Hb 801 System is optimised for haemoglobin testing in remote mine sites, hospital, primary care, public health and emergency ambulance settings. The system provides quick, easy access to lab-quality results without compromising accuracy, even in demanding climates with high temperatures and humidity.

Three Simple Steps

  1. Fill microcuvette
  2. Place microcuvette into analyser
  3. View Results


- +

Maximize Time with Your Patients

  • Immediate result in less than 1 second
  • Work everywhere with flexible power supply options
  • Easy to clean - less down time

Experience Daily Operational Efficiency

  • Large display and clear symbols allow you to quickly monitor workflow and result
  • “Let-go-grip” - no need to keep holding the microcuvette down during measurement
  • Vendor-neutral connectivity offers flexibility for e.g. data transfer

Trust Your Results at the Point of Care

  • Factory calibrated against the ICSH recommended reference method. No further calibration needed
  • Robust design and accurate testing within a wide range of temperatures and humidity
  • Built-in self-test

  • Sample Material: Capillary or venous whole blood
  • Measurement Range: 1.0-25.6 g/dL (10-256 g/L, 0.62-15.9 mmol/L)
  • Measuring Time: < 1 sec
  • Sample Volume: 10 μL
  • Dimensions: 143x87x45 mm (5.6x3.4x1.8 in)
  • Weight: < 250 g (0.55 lbs), batteries excluded
  • Storage Temp: Analyzer: 0-50 °C (32-122 °F), Microcuvettes: 10-40 °C (50-104 °F). Opened or unopened vials of microcuvettes can be stored for a shorter period of time (6 weeks) between -18-50 °C (0-122 °F).
  • Operating Temp: 10-40 °C (50-104 °F)
  • Power: USB adapter or 3 AA batteries (1.5 V Alkaline or 1.2 V NiMH).
  • Optional: HemoCue Rechargeable battery
  • Interface: USB and Bluetooth Low Energy Vendor-neutral connectivity
  • Quality Control: Built-in self-test, optional liquid controls

** Devices must be used by trained professionals.
