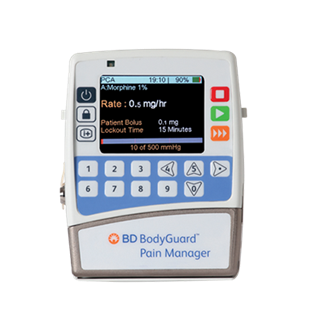

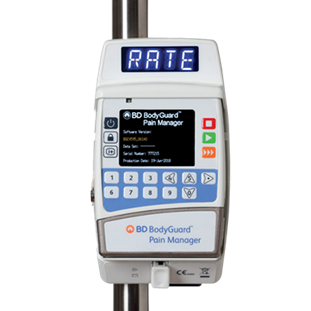

BD BodyGuard Pain Manager Infusion Pump
Pain Management Solutions
Designed around patients, the BD BodyGuard™ Pain Manager is an ambulatory infusion pump that offers a number of pain management modes to help improve quality of life and patient comfort. The BD BodyGuard™ Pain Manager infusion pump has 3 configurable modes: PCA, epidural and regional. It can be set to patients’ needs or clinical specialty via different infusion modes: continuous only, bolus only, continuous plus bolus, and auto bolus.
The BodyGuard™ Pain Manager infusion pump can be used for infusion through intravenous, subcutaneous, epidural, regional and wound infiltration routes.
Infusion Modes
• PCA
• Epidural
• Regional
Multiple Delivery Methods
• Basal only
• Basal & bolus
• Bolus only
Multiple Bolus Types
• Patient bolus
• Auto bolus
• Patient bolus combined with auto bolus
MediGuard™ Weight-based Dosing Software
Fully Programmable Drug Library
Dimensions and weight
Weight (with standard battery) 410 g
Pump only (H/W/D) 112 x 89 x 40 mm
Flow rate range
Basal rate 0 to 100 ml/hr in 0.1 ml increments
(depends on infusion modes)
KVO Rate 0 (OFF) - 5 ml/hr
Flow rate accuracy - ± 5 %*
Volume to be infused
0.1 – 1000 ml
Patient safety
Ultrasonic Air Sensor Air bubble size 0.04 – 1 ml
Occlusion Pressure adjustable 250-1500 mmHg
(adjustable depending on infusion mode)
Complies with the current version of the following standards
IEC 60601-1, IEC 60601-1-2, IEC 60601-1-6, IEC 60601-1-8, IEC 60601-1-11, IEC 60601-2-24, IEC 62304 and IEC 62366.
Protocols library
Fully programmable drug library, with automatic calculation
of drug concentration programmable via PC with
BodyComm™ software**
Up to 2000 user events log
Power supply
110-240 VAC, 50/60 Hz. 0.3 A max
Battery specifications
Rechargeable Li-Polymer 7.4 V Battery
1800 mAh.
Rate (mL/h)
Pump alarms/alerts
Air in line / Up Occlusion, Down Occlusion, Pump Unattended, End of infusion, Near End of Infusion, Low Battery, End Battery, Pump Unattended, Door Open, Missing Set Key, System Error
