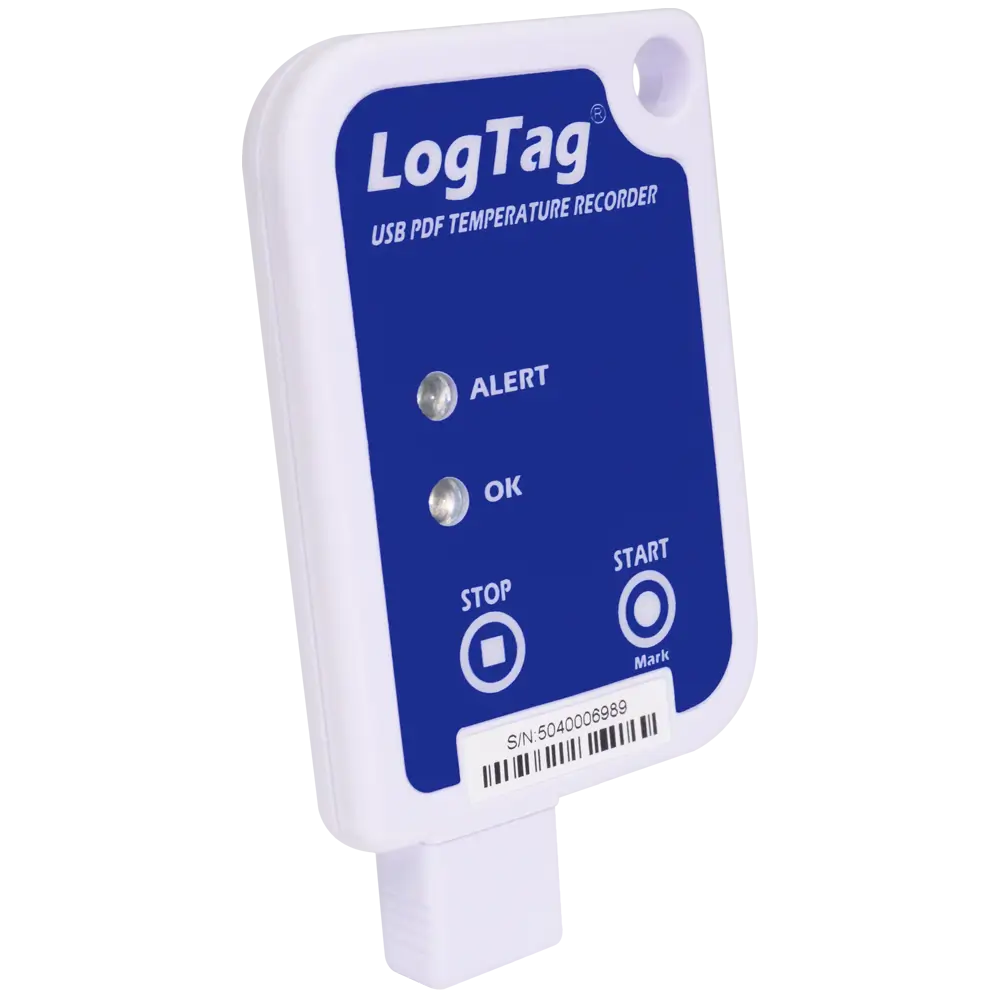

LogTag Temperature Logger with USB
No Reader required - This 2nd Generation USB model has all the features of the standard LogTag without the need to buy a LogTag Interface.

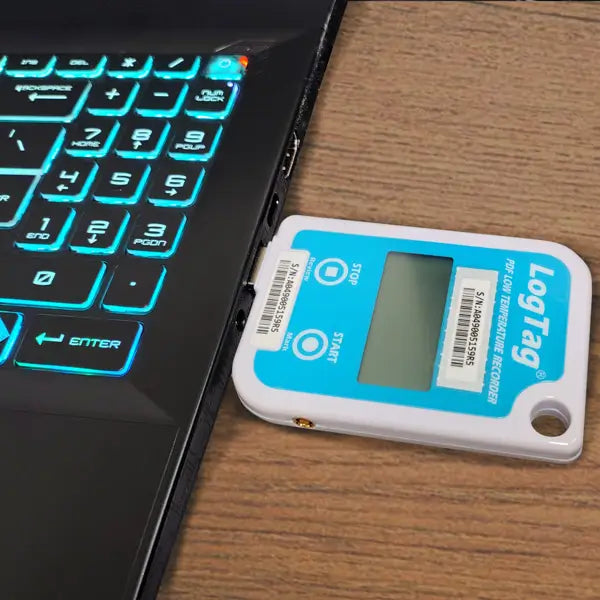

To configure the logger, or retrieve the data, you can simply plug the LogTag directly into a USB port on your PC.
Automatic PDF of your report - This USB LogTag has an extra party trick that older models don’t. When you plug it into the USB port on your computer, it opens a folder – similar to a USB memory stick. In that folder is a PDF copy of the data report. This means that data reports can be read on any computer using just a PDF reader such as Acrobat. The automatically generated PDF make this an ideal logger for tracking cold chain transport. Pack a USB LogTag with your goods and the receiver can plug it into any PC (no software needed) and download the report.
Large Memory: Store nearly two months of data at 5-minute intervals.
Visual Alerts: See at a glance if the logger has experienced any out-of-range temperatures
Easy to Use: The LogTag is so simple to set up and use that you'll be an expert in no time. We have a full LogTag training program on our site.
| Sensor Measurement Range | -30°C to +70°C (-22°F to +158°F) |
| Operating Temperature Range | -30°C to +70°C (-22°F to +158°F). |
| Storage Temperature Range | 0°C to +40°C (32°F to +104°F). |
| Rated Temperature Reading Accuracy | Better than ±0.5°C (±0.9°F) for -20°C to +40°C (-4°F to +104°F). Better than ±0.7°C (±1.3°F) for -30°C to -20°C (-22°F to -4°F) & +40°C to +60°C (+104°F to +140°F). Better than ±0.8°C (±1.5°F) for +60°C to +70°C (+140°F to +158°F). Actual performance is typically much better than the rated values. |
| Rated Temperature Reading Resolution | Less than 0.1°C/F. LogTag Analyzer currently displays to one decimal place of °C or °F. The native resolution is what is stored in the LogTag. |
| Sensor Reaction Time | Typically less than 7 minutes (T90) in moving air (1m/s) in EN12830:1999. |
| Recording Capacity | 16,129 temperature readings. 56 days @ 5min logging, 168 days @ 15min logging. |
| Sampling Interval | Configurable from 30 seconds to 18 hours. |
| Logging Start Options | Push button start (with configurable start delay from 1 minute to 72 hours) or specific date & time. |
| Recording Indication | Flashing ‘OK’ indicator / flashing ‘ALERT’ indicator. |
| Download Time | Typically with full memory (16,129 readings) in less than 30 seconds from time of insertion to availability of PDF report. Typically less than 10 seconds from time of insertion to availability of LTD file in LogTag® Analyzer (if configured). |
| Environmental | IEC 60529: IP64 with USB cap fitted. |
| Battery | Fixed CR2450 LiMnO₂ 3V; ~2-3 years life. |
| Real Time Clock | Built-in real time clock. Rated accuracy ±25ppm @ 25°C (equivalent to 2.5 seconds/day). Rated temperature coefficient is -0.034 ±0.006ppm/°C (I.e typically +/- 0.00294 seconds/day/°C). |
| Connection Interface | USB 2.0, A-type plug |
| Software | PDF Reader, LogTag® Analyzer 2.5 or higher |
| Size | 93mm(H) x 54.5mm(W) x 8.6mm(T) including protective USB cap. |
| Weight | 36g. |
| Case Material | Polycarbonate. |
