Medisafe Logger Replacement Premium
Medisafe Data Logger – Premium Replacement Logtag

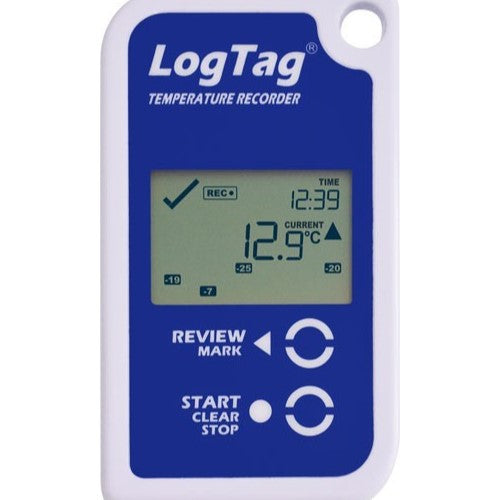

This Medisafe data logger is a premium replacement logger for the Medisafe. It has a replaceable battery, at-a-glance readouts of current temperature, alerts, alert history and an audible alarm.
If the Medisafe Data Logger made by LogTag measures temperatures outside the safe range you have set, you will be alerted by an audible alarm. You can check the status of the logger on screen.
This Medisafe Data Logger has enough memory for 15,900 recordings –that’s 66 days at 6-minute intervals or 11 days at one-minute intervals.
This model features a replaceable battery. The battery is a regular CR2032 watch battery, readily available from leading retailers.
Product Model : TRED30-16R (Replaceable Battery)
External Sensor Measurement Range : -40°C to +99°C
Operating Temperature Range : -30°C to +60°C
Storage Temperature Range : -10°C to +40°C
Rated Temperature Reading Accuracy : Better than ±0.5°C for -20°C to +40°C, typically ±0.3°C Actual performance is typically much better than the rated values.
Rated Temperature Reading Resolution : 0.1°C for measurements -40°C to +50°C
Sensor Reaction Time : Typically less than 2 minutes (T90) in moving air (1m/s)
Recording Capacity : 15,905 temperature readings 66 days @ 6min logging
Day summary statistics memory (for display on LCD): up to 30 days of Max/Min/duration and alarm trigger statistics
Sampling Interval : Configurable from 30 seconds to hourly
Logging Start Options : Push button start or specific date &time. Optional start delay up to 18 hrs
Recording Indication State indicator :“RECORDING”
Download Time : Typically less than 10 seconds for full memory (15,905 readings) depending on computer or readout device used
Environmental : IP61 (when vertically mounted or hung)
Power Source : 3V CR2032 (LiMnO2) coin cell battery, user-replaceable
Battery Life : Typically 1 year of operation NOTE: Typical battery life assumes 6-minute logging day statistics are reviewed on the display no more than once daily for no longer than 30 seconds each time. Download data monthly
NOTE: Continual activation of the audible alarm will reduce the working life of the battery. When an alarm is triggered, the alarm should be cleared and reset as soon as possible.
Real Time Clock : Built-in real time clock
Rated accuracy ±25ppm @ 25°C (equivalent to 2.5 seconds/day).
Rated temperature coefficient is -0.034 ±0.006ppm/°C (i.e typically +/- 0.00294 seconds/day/°C)
